Innovation in 3D scanning has changed how industries approach design, manufacturing, and digital preservation. At the heart of this transformation is the evolution of multi-line laser technology, a sophisticated approach that’s redefining scanning accuracy, efficiency, and reliability for applications ranging from industrial inspection to reverse engineering and cultural heritage conservation.
Multi-line laser scanners represent a leap forward from traditional single-line or structured light systems. Rather than projecting a single beam, multi-line laser technology emits an array of finely controlled laser lines—often blue or infrared—onto the surface of an object. These lines interact with the object’s geometry, and their reflections are captured by high-resolution cameras or sensors. The resulting data is processed to create a precise 3D map, or point cloud, of the object’s surface.
The scientific principle underpinning this method involves triangulation, where the position and angle of each laser line are correlated with the observed reflection to calculate exact spatial coordinates. Advanced multi-line systems employ techniques such as spatial quadric surface modeling and geometric estimation to overcome the challenges posed by curved surfaces, reflective materials, or complex object textures. Research in journals like Scientific Reports highlights the use of spatial quadric equations to calibrate and correct for non-linear distortions, delivering measurable improvements in reconstruction fidelity.

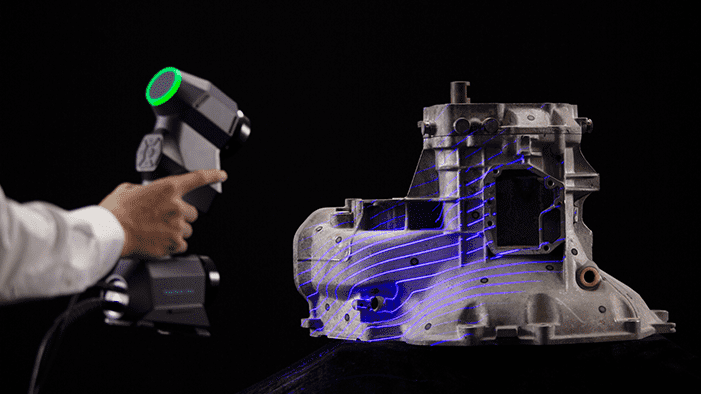

Modern 3D scanning technology relies on a synergy of hardware and software. Multi-line laser scanners, such as those incorporating blue laser lines and full-field structured light, achieve metrology-grade accuracy with single-frame precision down to 0.01 mm. High-speed data capture—often reaching millions of points per second—enables the rapid digitization of small, intricate components and medium-sized assemblies alike.

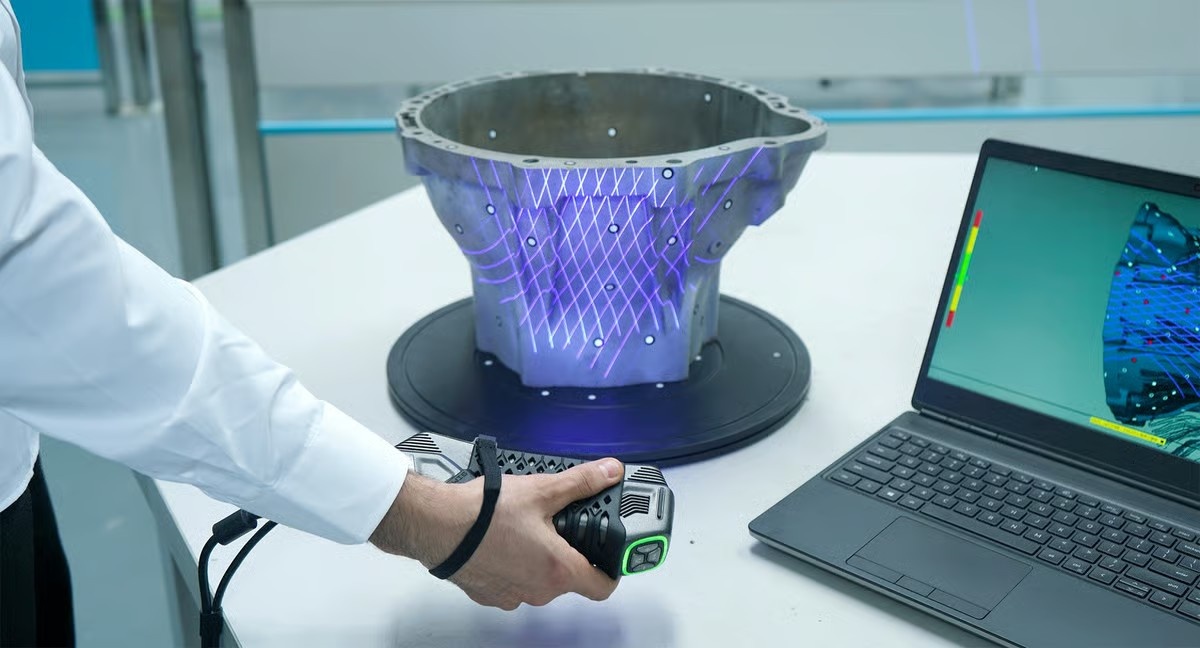

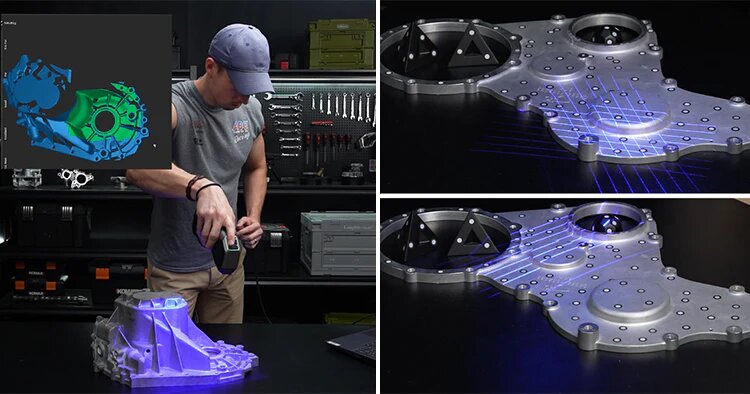

A critical aspect of these systems is adaptability. Many scanners now offer multiple scanning modes (e.g., cross-line, parallel-line, and full-field structured light), which can be selected based on the object’s size, surface properties, and required resolution. Automated turntables, marker kits, and advanced tracking algorithms streamline the scanning process, reducing the need for manual intervention and ensuring consistent results even on difficult surfaces like shiny metals or deep black plastics.
The science behind laser scanning hinges on precise calibration and the mathematical modeling of both the scanning system and the object. Calibration routines typically involve capturing reference patterns on known geometries, such as planar calibration plates, and fitting complex equations—like quadric surfaces—to the observed data. This process corrects for optical distortions introduced by elements such as diffractive optical elements (DOE) or large-angle projections.
Moreover, geometric estimation techniques are used to optimize the correspondence between points in stereo camera systems, minimizing errors introduced by noise or misalignment. By estimating minimum geometric distances between observed and projected points, multi-line laser scanners can refine the accuracy of every 3D coordinate in the final model. This methodology supports applications in industrial quality inspection, automotive design, robotics, and even biomedical device development.
Industries benefit from multi-line laser scanning technology in a variety of ways:
Rapid and accurate digitization of existing parts for modification, documentation, or replication.
High-resolution measurement and comparison against CAD models to ensure manufacturing consistency.
Non-contact 3D digitization of artifacts and monuments, preserving detail without risk to fragile surfaces.
Inspection of complex geometries, wear analysis, and rapid prototyping.
Elevate your 3D scanning precision, efficiency, and adaptability with BU-LASER’s cutting-edge multi-line laser modules—engineered specifically for high-performance 3D reconstruction, machine vision, and quality inspection. As a trusted high-tech enterprise specializing in semiconductor lasers, BU-LASER delivers industry-leading solutions that redefine reliability and accuracy in 3D scanning applications.
- Optimized Blue Laser Performance: Adopting 450nm blue laser with 1.6W output power, the module boasts exceptional brightness and directionality. Its high light intensity effectively resists ambient light interference, enabling stable operation even in complex outdoor or industrial environments. It also excels in scanning special materials such as black or reflective surfaces, eliminating data loss caused by weak reflection.
- Precise Multi-Line Configuration: Featuring a three channel laser design with multi-line cross beam design (13+13+7 lines/ 25+25+7 lines/ 49+49+1 lines, 21+21+7 lines ), the laser projects uniform, clear light lines that capture rich spatial details in a single scan. This configuration significantly boosts data collection speed and point cloud density, laying a solid foundation for high-fidelity 3D modeling compared to traditional single-line lasers.
- Flexible & Compact Design: With a compact size of 40×27mm, the module is easily integrable into handheld 3D scanners and vision inspection equipment. Equipped with PWM modulation (100KHz frequency, 0-100% duty cycle), it supports stepless power adjustment to adapt to diverse scanning distances and object sizes.

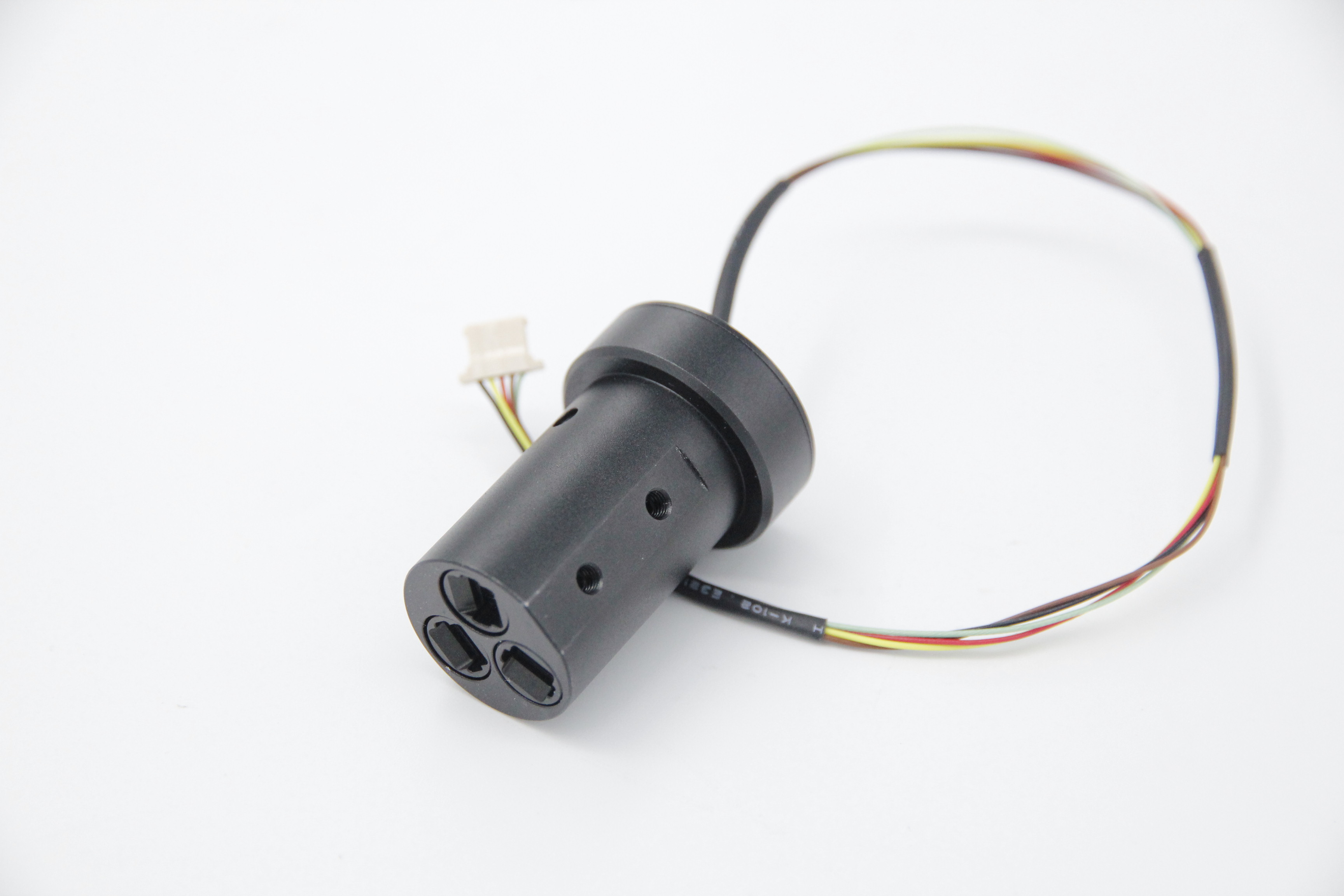

3 Channel laser module
49+49+1 multi-line laser
As industries place increasing emphasis on digital transformation, the science behind multi-line laser scanning stands out for its combination of accuracy, efficiency, and adaptability. By leveraging advanced calibration, geometric modeling, and high-speed data capture, multi-line laser scanners offer a versatile foundation for 3D digitization across countless fields.
1. Single straight line laser module
2. Single-channel laser module to project Grid/ Structured dot matrix (use focus lens +DOE).
3. Single-channel laser module to project a multi-line pattern with a DOE (use focus lens +DOE).
4. Single-Channel laser module to project parallel multi-line laser beams ( use Powell line lens +DOE).
5. Multi-Channel laser module to project intersecting and parallel multi-line laser beams ( use Powell line lens +DOE). For current standard module, the customer can select to made it with one line, 3 lines, 7 lines, 13 lines, 21 lines, 25 lines, 49 lines.
All the above lasers can be customized with wavelength 375-980nm, different power, housing size, and so on. To know more, please get in touch with us at song@bu-laser.com.
