UV curing is a high-efficiency, environmentally friendly photochemical manufacturing technology widely used in modern precision industrial production. Different from traditional thermal curing that relies on high-temperature baking, UV curing uses specific ultraviolet photon energy to excite photoinitiators inside UV glue, resin, ink and coating materials, triggering instantaneous cross-linking polymerization reactions. It converts liquid materials into solid high-molecular structures within seconds, achieving fast surface drying, bonding fixing and surface hardening without high-temperature heating.

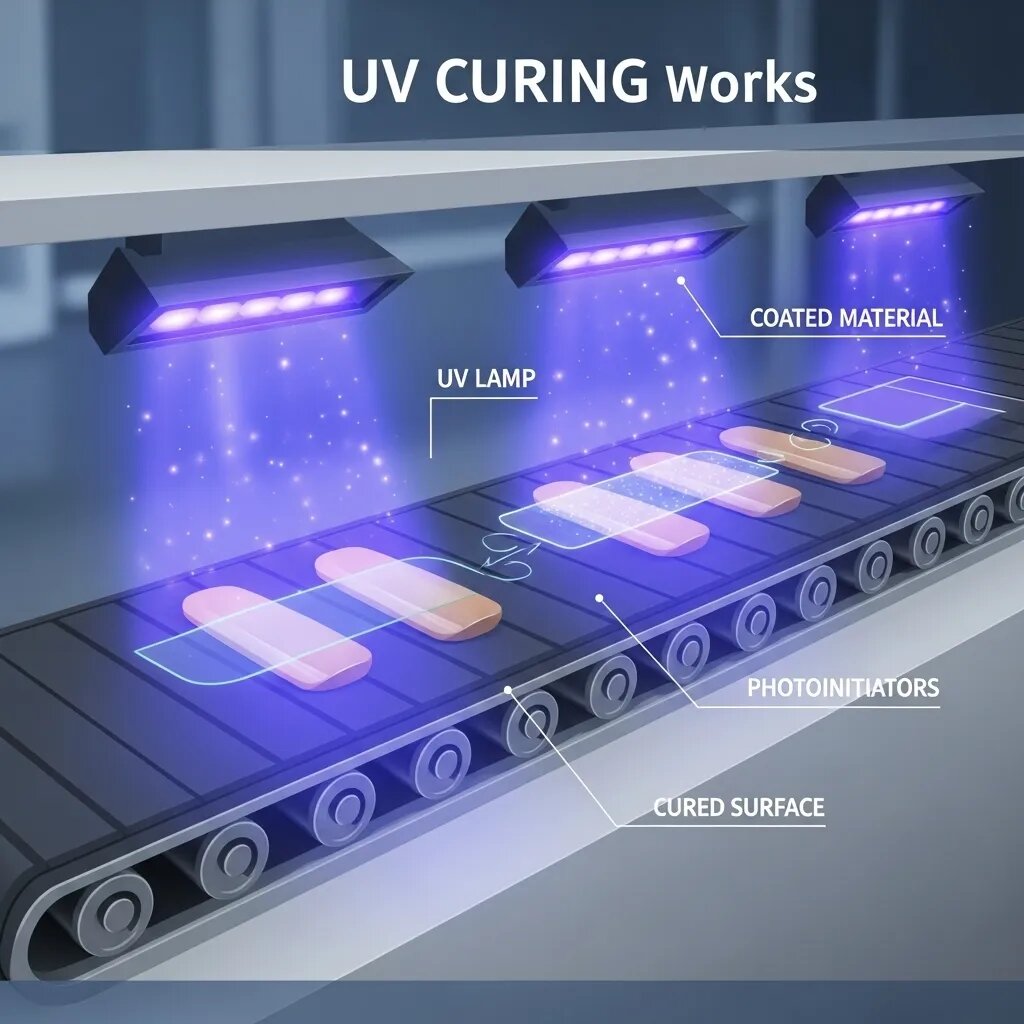

UV curing works as a photochemical process that uses ultraviolet light to turn liquid materials into solid polymers instantly. This process differs from traditional methods that depend on evaporation or heat, as UV curing creates a crosslinked network through radical or cationic polymerization.
Three key components work together to make this happen. Photoinitiators serve as special molecules that absorb UV energy and split apart to create reactive species. The base material consists of monomers and oligomers. A UV light source delivers the energy needed for the process.
UV light exposure causes photoinitiators to set off a chain reaction that makes monomers and oligomers cross-link faster. The material hardens in seconds or even milliseconds through this polymerization. Success depends on specific wavelengths (200-480 nm), proper light intensity, and enough exposure time.
Traditional thermal drying shrinks coatings by more than 50% as solvents evaporate. UV curing keeps 100% of the original thickness because nothing evaporates. On top of that, it substantially reduces environmental hazards compared to traditional drying methods that release volatile organic compounds.
The process’s speed stands out – UV curing changes materials almost instantly, while heat-based methods can take hours or days. This quick transformation lets you handle, package, or process materials right away.
The core of high-quality UV curing lies in wavelength matching, stable energy density and uniform beam irradiation. Traditional mercury lamp curing equipment suffers from wide spectral dispersion, high heat radiation, short service life, slow startup and high power consumption, which easily cause thermal deformation, material yellowing and low curing consistency for thin and precision workpieces. In contrast, semiconductor UV laser modules feature single precise wavelength, high monochromaticity, concentrated energy and cold light source performance, becoming the upgraded core light source for high-end precision UV curing processes.
The mainstream laser wavelengths dedicated to industrial UV curing are 405nm violet laser and 365nm/395nm ultraviolet laser modules. Each wavelength corresponds to different photoinitiator absorption peaks and material characteristics: 405nm laser is suitable for high-transmittance resin curing, 3D printing photosensitive resin rapid molding and surface coating curing; 395nm and 365nm short-wave UV lasers are more suitable for deep-layer curing, shadow-area secondary curing and high-hardness ink curing scenarios that require higher photon energy.
Our industrial UV laser modules adopt professional constant-temperature closed-loop drive and high-precision optical collimation design. The output power fluctuation is strictly controlled within ±2%, ensuring consistent irradiation energy in long-term continuous production. The laser beam presents uniform energy distribution with no hot spot deviation, effectively solving common defects such as incomplete local curing, surface wrinkles, residual viscosity and uneven hardness in traditional curing processes.
Compared with traditional UV lamps, laser UV curing has unique industrial advantages: cold light source zero thermal damage, instant on/off without preheating, ultra-low light decay, customizable spot size and irradiation range; and support for local precision fixed-point curing. It is especially suitable for ultra-thin flexible materials, electronic precision components, micro-component bonding and high-precision pattern curing processes that are sensitive to heat and require high dimensional stability.

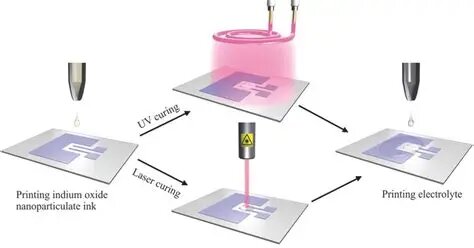

At present, UV laser curing modules are widely applied in 3D printing resin rapid curing, electronic component UV adhesive bonding, FPC flexible circuit board ink curing, optical lens coating hardening, automotive parts coating finishing, medical device glue sealing and micro-industrial assembly precision fixing.
We provide customized UV laser curing solutions with different power density, zoom optical structure, rectangular uniform light spot and long-time industrial continuous working mode, helping customers achieve higher yield, lower energy consumption and more stable precision curing production.
Our company provides customized fiber-coupled 375nm, 395nm and 405nm violet laser modules exclusively for UV Curing. Each laser module is equipped with built-in constant temperature driving and power closed-loop control system.
BU-LASER is the original manufacturer of laser diode module from 375nm to 980nm, providing you with high-quality OEM & ODM services with over 16 years of mature experience!
